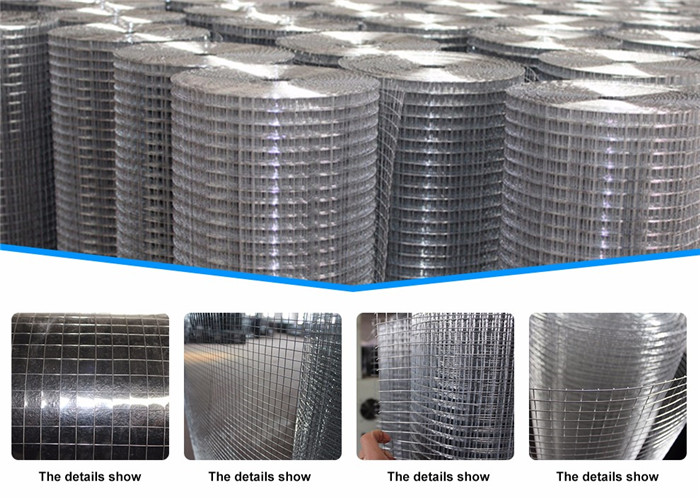

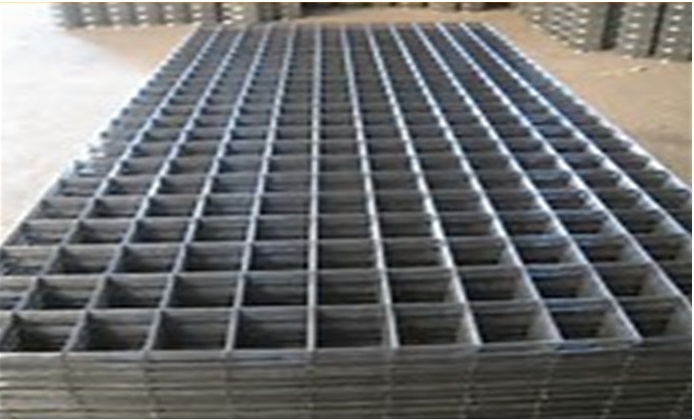

Square Stainless Steel Welded Wire Mesh, BWG4#, Low Carbon Iron
Name: Welded Wire Mesh Mesh:1/4''-6'' Wire dia:0.30-6.50mm Surface:galvanized or PVC coated
Certificate: ISO9001:2008 Welded Wire Mesh Surface: Galvanized and PVC or Stainless Steel
Mesh:1/4''-6" Wire Diameter:0.3-6.5m Width:0.5-1.8m Standard roll
length:30m
Storage : Some product available from stock
Specifications
Materials: Galvanized iron wire, stainless steel wire, PVC coated
wire
Patterns: Welded before weaving, after weaving, galvanized before
weaving and after weaving
Characters: strong welded points and bright luster.The mesh doesnt
come loose even if cut in parts or
beingexerted force on parts .Compared with general iron wire ,the
products are better in respects of
anti-corrosive and anti-rust .
Usage: They are widely used in industry, agriculture, construction,
transport and mining .Such as machine
protection cover, ranch fender, garden fence, window protection
fender, passage fender, fowl cage, egg
basket, foodstuffs basket, etc.
Specification list of Welded wire mesh |
Opening | Wire diameter(BWG) |
In inch | In metric unit(mm) |
1/4’’*1/4’’ | 6.4mm*6.4mm | 22,23,24 |
3/8’’*3/8’’ | 10.6mm*10.6mm | 19,20,21,22 |
1/2’’*1/2’’ | 12.7mm*12.7mm | 16,17,18,19,20,21,22,23 |
5/8’’*5/8’’ | 16mm*16mm | 18,19,20,21, |
3/4’’*3/4’’ | 19.1mm*19.1mm | 16,17,18,19,20,21 |
1’’*1/2’’ | 25.4mm*12.7mm | 16,17,18,19,20,21 |
1-1/2’’*1-1/2’’ | 38mm*38mm | 14,15,16,17,18,19 |
1’’*2’’ | 25.4mm*50.8mm | 14,15,16 |
2’’*2’’ | 50.8mm*50.8mm | 12,13,14,15,16 |
Technical Note:
1.Standard roll length:30m;width:0.5m to 1.8m
2. Special sizes available at request
3. Packing: in waterproof paper in roll.Custom packing available at
request.
Galvanized Fencing Mesh |
Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
2’’*3’’ | 50mm*75mm | 2.0mm,2.mm,1.65mm |
3’’*3’’ | 75mm*756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2’’*4’’ | 50mm*100mm | 2.11mm,2.5mm |
4’’*4’’ | 100mm*100mm | 2.0mm,2.5mm |
