1. Material about welded wire mesh
Electro galvanized wire, hot-dipped galvanized.
We choose the best low carbon wire or stainless steel wire material
available in China.
The high quality & reasonable price product is from the right
material.
[Electro galvanized]
Electro galvanizing, uniform coating and thin thickness. Coating
are usually only 3-15 microns with bright
appearance. Common electro galvanized wire on zinc amount is 8-13
g/m².
[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating.
Coating are usually 45-300 microns with
darker color and good corrosion resistance. Hot-dip galvanized wire
amout of zinc: 30-60 g/m²
2. Welding Type
Electro galvanized before welded wire mesh
Electro galvanized after welded wire mesh
Hot-dipped galvanized before welded wire mesh
Hot-dipped galvanized after welded wire mesh
Iron/galvanized wire+pvc coated
Stainless steel 304,316 wire
3. production
Our automatic welding machines can set up any mesh sizes in the
market, no matter it's standard type or
special requirement;
The fully digital controlled techniques and well-trained staff can
ensure the even mesh size and the
accurate dimensions of panels.
4. specification

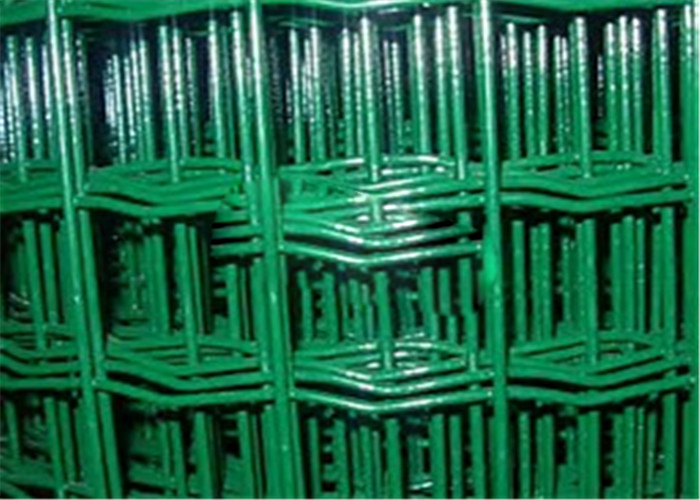

PVC Coated Welded Mesh |
Opening | Wire Diameter |
In inch | In metric unit(mm) |
1/2'' × 1/2'' | 12.7mm ×12.7mm | 16,17,18,19,20,21 |
3/4'' × 3/4'' | 19mm × 19mm | 16,17,18,19,20,21 |
1'' × 1'' | 25.4mm × 25.4mm | 15,16,17,18,19,20 |
Technical Note: 1.Standard roll length: 30m, width:0.5m to 1.2m 2.Special sizes availabe at request 3.Packing:In waterproot paper in rolls. Custom packing available at
request. |
Specification List of Welded Wire Mesh |
Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available
at request. |
