Custom Titanium Nickel 904L Model Demister Pad of wire mesh
1.Product Description
Pure Nickel is a silvery white metal with excellent corrosion
resistance,high performance electric vacuum and electromagnetic
control performance,excellent welding performance and processing
properties.Nickel in the seawater,salt solution and the
organicindustry ,widely used in chemical,mechanical,medium(such as
fatty acids,phenols ,alcohols,electronic,food.etc)at room
temperature are extremely stable.it is not stable in the acetic
acid,acetic acid and intolerant inorganic acid corrosion.
Sp 40-100 60-150 105-300 140-400 160-400 200-570
Dp 60-100 80-100 80-150 90-150 150-300 200-400 300-600
Hr 20-100 30-150 70-400 100-600 170-560
Hp 33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120
wire diameter | round and flat type.0.08-0.5mm |
wire mesh width | 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400,500mm, 600mm and so on |
Material: | 304.321.316.316l 904l F4 PTFE 2205.2207.monel titanium nickel |
2.Product Details
Material: SS304 304L 316 316L, Titanium, Nickel, Monel, Inconel etc.
SS304 -- Water solution ,nitric acid ,reduced crude
SS304L -- Petroleum fractions
SS316 -- Fatty acids ,reduced crude
SS316L -- Naphtenic acids ,and other corrosives
Monel -- For caustic soda,alkalis ,dilute acids
Incoloy 825 -- Acid,neutral and alkaline solutions like sulfuric
Incoloy 625 -- Phosphoric and fatty acids
Density: 128kg/m3 144kg/m3 168kg/m3 220kg/m3 etc.
Types of Nickel Wire Mesh Mist Eliminator Demister Pads : Standard type,
High efficient type, High Penetration type
1) Standard type
- Model: 40-100 60-150 140-400
- Common diameter: 0.20-0.45 mm
- Form code: SP
- Weight capacity: 168 Kg/m3
- Specific surface area: 529.6 m2/m3
- Porosity : 0.9788ε
2) High efficient type
- Model : 60-100 80-150 200-400 80-100 90-150
- Common diameter : 0.12-0.45mm
- Form code: HR
- Weight capacity: 128 Kg/m3
- Specific surface area: 403.5 m2/m3
- Porosity : 0.9839ε
3) High Penetration type
- Model: 20-40 30-80 40-120 50-120
- Common diameter: 0.21mm
- Form code: HR
- Weight capacity: 168 Kg/m3
- Specific surface area: 529.6 m2/m3
- Porosity : 0.9788ε
3.Product Packing
Plastic bag then carton or wooden case--
Special packing can be made according to the clkients' request
4.Product Features
Simple structure, lightweight.
High porosity, less pressure drops.
Big surfaces area, high demisting efficiency.
Easy installation, operation and maintenance.
Long service life.
5. Product Application
Electronics, electrical products EMI device
Screen demister
Oil and Gas Separator
Dust, the Environmental Protection
Motor vehicles, tractors filter
Various occasions of separation, filtration devices
Automobile parts in sealed shock absorber (shock absorber),
silencers and exhaust purification devices, etc.
6.Company Information
Anping FangDa Metal Wire Mesh Products Co.,Ltd
35 years experience in manufacturing wire mesh ,
5 years experience in exporting wire mesh,
4 years alibaba supply member.
Trade Assurance amount of USD 28000
Certification:ISO9001,CE,SGS. Fence Market :
American,Poland,Russia,Pakistan,Iran,Germany,England.Main Products:Chain Link Fence, Galvanized chain link fence ,PVC
chain link fence,fence.Main Market:Poland,Russia, Crotia,Hungary,Italy,Germany,etc Europe
Countries.Austrilia,New Zealand,Canada.

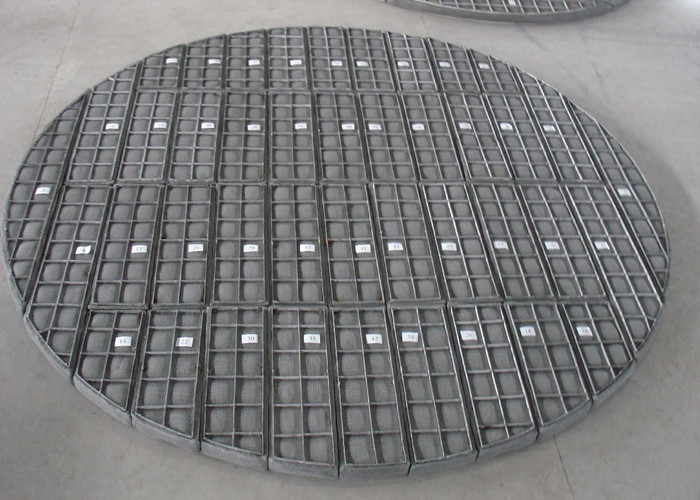

7.Product Display
