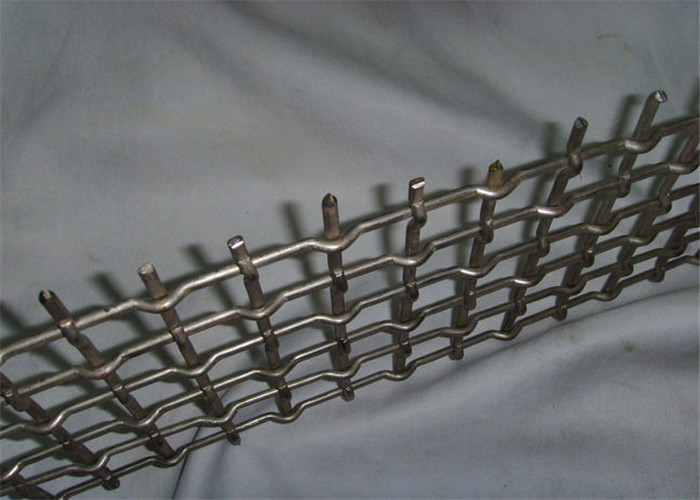

Low Carbon Steel Stability Consistency and Smooth Crimped Wire Mesh
Crimped wire mesh is woven by a pre-bent into a wave-shaped metal
wire. The metal wire be bended by
mold, so make the wire in both directions relative to the correct
position, thus ensuring the crimped wire
mesh of mesh size consistency.
Product Description
1) Products Name of Crimped Wire Mesh:
Mining screen mesh, Quarry screen mesh, Industrial screen mesh,
Sand/Garvel/Aggregate screen mesh,
Hooked screen mesh, Rock crusher sieve mesh, Vibrating screen mesh,
Trommel screen, vibration
process, Screen deck mesh
2) Materials of Crimped Wire Mesh:
Carbon iron wire, galvanized steel wire or stainless steel wire.
3) Range Size of Crimped Wire Mesh:
Type: Hooked or flat
Wire dia: 1.5 mm --- 14.0 mm
Opening: 2.0 mm --- 110 mm
Width:1.0M --- 2.5M
Length:1.0M --- 30M
Wire Gauge
SWG | Wire Diameter
mm | Mesh/Inch | Aperture
mm | Weight
kg/m2 |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
4) Range Size of Crimped Wire Mesh:
Woven style:Two-way across wave bending, Locked crimping, Flat-topped
crimping, Two way crimping,
One-way separated wave crimping.
Flat-topped crimping
Flat-topped crimping
Locked crimping
One-way separated wave crimping
5) Usage of Crimped Wire Mesh:
Mainly used as screen mesh, it is widely used in many industries,
such as mining screen, quarrying
screen, the screen deck, screen wire for stone crusher, Classifying
Trommel; Vibrating screen; Road
construction equipment; The Asphaltum mix round equipment and the
mine vibrating screens, chemical
industry, pharmacy, machinery, protection, construction.
6) Stainless Steel Crimped Wire Mesh:
A. Material: stainless steel wire 304,304L,316,316L,904L
B. Specifications of the stainless steel crimped wire netting:
Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: 1m, 1.2m, 1.8m, 2m
Length: 15m, 30m
C. Features of the stainless steel crimped wire netting:
The structure is hard, enduring, and graceful, the mesh of mesh is
even, and it has the characteristics of
corrosion-resisting and trusty enduring
D. Applications of the stainless steel wire netting:
Used for screen in mine, coal factory, industry, architecture,
filter a sand grain, filter the liquid and air, also
can be used in the security in machinery fittings
Packaging & Shipping
7) The Packing of Crimped Wire Mesh:
A. Waterproof paper and woven bags;
B. Wooden boxes in pallet;
C. As per requirement;
